For Natural Pain Management/Reduction Section

Features & Benefits of use of Micro-Z™

World's First Wearable DC Stimulator

The origins of DC stimulation date back 50+ years when it was invented for healing chronic wounds. The original devices were very large. So, we developed the world's first wearable DC stimulator along with the world's first glove and stocking electrodes. Now, with Micro-Z™ technology and Intelligent Textiles for Medicine™, individuals needing pain reduction and tissue healing can use at home.



How Micro-Z™ Technology Works

The Micro-Z™ is a direct current (DC) stimulator that delivers a monophasic twin peaked high voltage pulsed current (HVPC) in a micro-amperage range deep into the tissue bed to promote increase microcirculation, reduction of edema, which in turn promotes healing. Using the Micro-Z™ will help relieve pain and heal wounds while reducing muscle spasms and increasing range of motion.


Micro-Z™ Is Superior and Unique to TENS

Since the human body operates on DC signaling, the Micro-Z™ stimulates healing at the source of pain instead of masking it like traditional TENS electrotherapy. Micro-Z™ therapy effects the cells and vessels instead of stimulating the sensory nerves or causing muscle contractions.


No other device in the world delivers this unique electrical combination to promote healing.



  • Direct Current - Parallels the body’s own electricity
  • Shorter Pulses - Makes it more comfortable to the user
  • High Volt - Greater force to push the energy deeper
  • Low Amp Microcurrent - Effects cellular repair; Increases ATP production

Micro-Z™ Clinically Proven Benefits

  • Increases microcirculation
  • Promotes angiogenesis (the formation of new blood vessels)
  • Reduces edema and inflammation
  • Increases collagen production and alignment
  • Decreases scar tissue formation
  • Kills bacteria
  • Increases fibroblast cells (needed for cellular repair)
  • Increases white blood cell migration to site of injury
  • Increases oxygen level in tissue
  • Improves cell organization
  • Increases ATP production
  • Reduces pain due to healing of tissue


Micro-Z™ Clinically Proven Applications

  • Acute/Chronic pain
  • Muscle pain
  • Joint pain
  • Nerve pain
  • Sports injuries
  • Wounds
  • Fractures
  • Sprains/Strains

Micro-Z™ vs. TENS

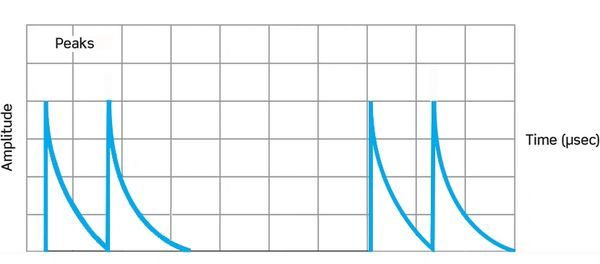

Graph showing periodic amplitude peaks decaying over time.

HVPC stimulation (direct current) creates an electrical field over the treated area that promotes increased microcirculation.


  • Dosage in Microamps (millionth of an ampere).
  • Deep tissue penetration through rapid ramp speed at 4 microseconds.
  • Promotes micro blood circulation to relieve pain at the origin.
  • Helps relieve muscle spasms.
  • Reduces edema and inflammation.
  • Promotes healing.
  • Antibacterial.
  • Daytime AND nocturnal treatment programs.

TENS AC Stimulation

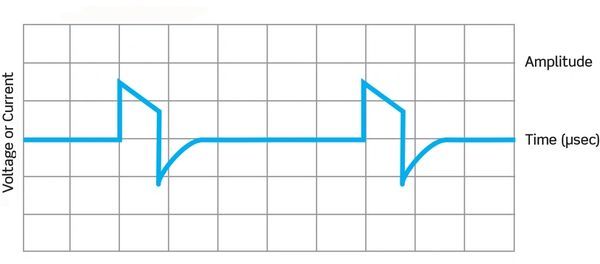

Graph showing voltage or current amplitude over time with two pulse-like shapes.

Transcutaneous stimulation (alternating current) delivers a low-frequency (<50 Hz) alternating current to a focused treatment area. Due to the nature of low-frequency these signals have a low capacity to overcome skin resistance – resulting in only providing temporary pain relief while being worn.


  • Dosage in Milliamps (thousands of an ampere).
  • Shallow tissue penetration through slow ramp speed at 40 microseconds.
  • Blocks the pain signal from the brain acting as an antagonist to nerves.

Micro-Z™ Instructions for Use

  1. Make sure the skin is clean on the treatment area.
  2. Snap Micro-Z II™ lead wires into the back Micro-Z II™, making sure that the Black button (-) is attached to the negative snap and that the red button is attached to the positive (+) snap.
  3. Place the two (2) AAA in battery compartment.
  4. Place the Micro-Z II™ 3” round electrodes to the red and black lead wire pins. And then place the black lead wire /electrode furthest away from the heart on a muscle bed and the red lead wire four to five inches away on another muscle.
  5. Turn on the Micro-Z II™ by pushing down the On/Active button on the left-hand side of the Micro-Z II™; this on switch actives the device for a 30-minute treatment P1; by pushing the right-hand button this activated the 8-hour treatment P2.
  6. P1 is a 30 min. treatment and if selected the Micro-Z II™ will automatically turn off after the 30 min. treatment is complete.
  7. P2 is an 8-hour treatment where the Micro-Z II™ will cycle on and off automatically over 8 hours. It will be on for 20 min and off for 40 min. during the treatment period.
  8. Then pump the increase button (+) to light sensation or comfort level and then you can reduce sensation by decrease button (-) to below sensory feeling. Note: that using the 8 hour treatment at night while sleeping the therapeutic level of stimulation is always below sensory
  9. The Micro-Z II™ will turn off automatically once the 30 min (P2) or 8 hr. (P2) treatments are completed. If you want to stop the stimulation, hold down the button On/Active for 5 seconds.

If you experience any skin irritation, stop the therapy and consult Health One Podiatry. The Micro-Z II™ is very safe to use, and you should use them as often as you can both daily as well as at night.


For more information go to the manufacture’s website:
www.prizm-medical.com

Natural Supplements with Evidence for Pain Relief

Anti-Inflammatory Fatty Acids

  • Omega-3 fatty acids (EPA & DHA) – Found in fish oil; can help reduce inflammation linked to joint and musculoskeletal pain (e.g., rheumatoid arthritis). Evidence suggests benefits over time.

Herbal Extracts

  • Turmeric / Curcumin – A potent anti-inflammatory compound; clinical studies show it may reduce joint pain and improve function in osteoarthritis. Often paired with piperine (from black pepper) to improve absorption.
  • Boswellia (Indian frankincense) – Traditionally used in Ayurvedic medicine; extracts may reduce inflammation and pain in joints.
  • Devil’s Claw – Some evidence for low back pain and osteoarthritis; effects may be comparable to NSAIDs in certain studies.

Vitamins & Minerals

  • Vitamin D – Low levels are linked with chronic pain, and supplementation may help reduce widespread pain in deficient individuals.
  • Magnesium – Involved in nerve and muscle function; may help with muscle tension and pain, especially cramps.

Supplements That Some People Try (Less Clear Evidence)

These are used by some for pain or discomfort, but research is less robust:

Glucosamine & Chondroitin – Studied mostly for osteoarthritis; some modest benefits reported, but results vary.

Safety & Interactions to Know

Supplements are not risk-free. They can interact with medications (e.g., blood thinners), and quality control is variable (not FDA-regulated like drugs). Some herbal products thinned the blood or could have adverse effects if combined with other supplements or drugs. Always consider potential side effects: digestive symptoms, allergy, kidney/liver effects, or interactions with anticoagulants or prescription painkillers.

Tips for Using Natural Supplements Safely

  • Start with lab-verified products: Look for third-party certification (e.g., USP, NSF).
  • Use consistent dosing: Many studies use specific dosages over weeks/months.
  • Pair with lifestyle approaches: Diet (e.g., anti-inflammatory foods), exercise, physical therapy, and stress reduction often enhance results.

Bottom Line:  Natural supplements can help reduce inflammation and pain for some people, especially when used thoughtfully and under a provider’s guidance. Their effectiveness varies by individual and type of pain, and they should complement—not replace—medical care when pain is severe or persistent.

Material presented by Dr. Elliot Diamond with assistance of ChatGPT. Consult with your internist or pharmacist with specific questions as related to your current medications.
